France Freezing Filter Stainless Steel 500L Perfume Making Machine
|FOB Price:||Get Latest Price|
|Min.Order Quantity:||1 Set/Sets|
|Supply Ability:||50 Unit/Units per Month|
|Payment Terms:||L/C,T/T,Western Union|
- Product Type: Perfume
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: LIENM
- Model Number: LM-200-2000L
- After-sales Service Provided: Engineers available to service machinery overseas
- Product: France Freezing Filter Stainless Steel 500L Perfume Making Machine
- Perfume Making Machine: Perfume Making Machine
- Machine Type: Perfume Making Machine
- Type: 500L Perfume Making Machine
- Market: Africa, Asia, Australia, Europe, The USA, ect.
- Application: Cosmetics, Medical, Food, ect.
- Material: Stainless steel
- Capacity: Can be customised
- Packing: Wood case
- Condition: New
Packaging & Delivery
|Packaging Details:||Wooden case packing|
|Delivery Detail:||30days after get 30% deposit|
SpecificationsPerfume Making Machine
1-Perfume Filter made in USA
2-The freezing Unit Made in France
Guangzhou Lianmeng Machinery Equipment Co., Ltd. is a scientific enterprise specializing in the research, development, production and management of cosmetic, food and pharmaceutical machinery, filling machinery and packing machinery. Our company has complete machining equipment, perfect technological flow, powerful technical force, excellent product development and design ability as well as rich production experience. Our company takes the lead among same traders in obtaining special equipment manufacturing license (Class I and Class II pressure vessels) of China.

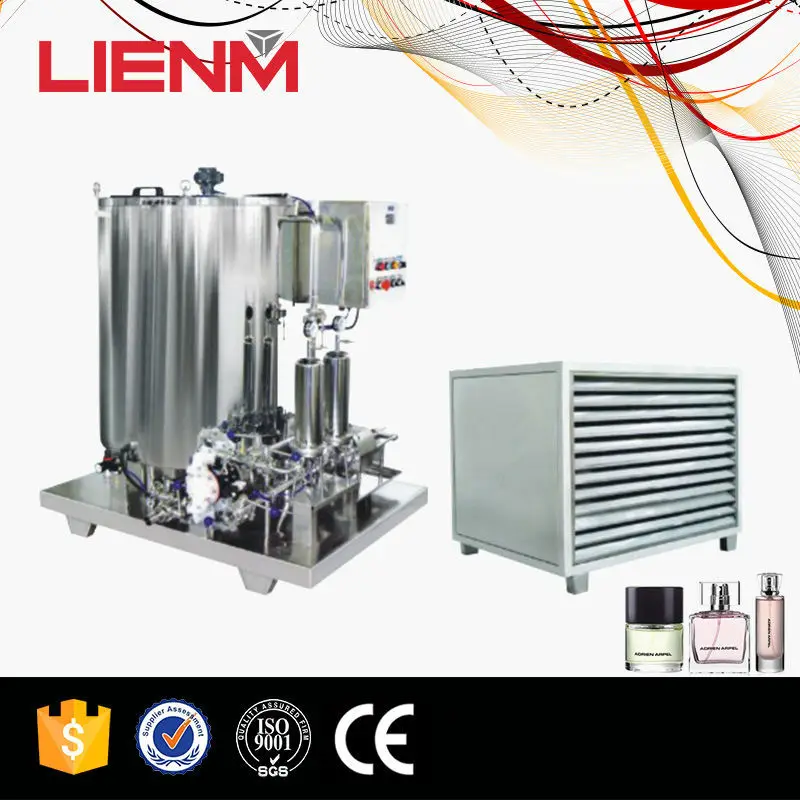

Product Name: France Freezing Filter Stainless Steel 500L Perfume Making Machine
The product is a latest product developed by our company specially used for clarification and filtration of liquid such as cosmetics and perfume etc. after freezing. It is an ideal device for filtering cosmetics and perfume in cosmetic factories. The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.
The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.
Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.
- Stainless steel heat preservation freezing tank and titanium metal coil pipe
- Freezing unit (place of origin France)
- Anticorrosive pneumatic diaphragm pump (place of origin USA)
- Polypropylene microporous filtration film
- Stainless steel moveable supporter
- Sealing type electric control system and sanitary pipe fittings and valves
- The machine with perfume pot, refrigeration unit , anticorrosive pneumatic diaphragm pump and pipe system. On the top of the tank can add motor then the machine have blending Mixer ,Cooling and Filtration function
What is perfume making machine?
perfume making machine is a mixing system, freezing and filtration system for the manufacture of perfume, cologne, deodorant and toilet water in cosmetics industry.
What is perfume making machine made of?
perfume making machine is usually made of perfume mixing tank , chilling system, filtration system, diaphragm pump and electrical control panel etc.
The perfume mixing system : there’s a spiral evaporating coil inside the tank. The evaporating coil is connected to the chiller.If you need ,we also can add a pneumatic motor on the top of the tank for mixing
The chiller takes French technology and the minimum chilling temperature can amount to -15 degree Celsius.
The filtration system includes two pieces of polypropylene microporous membrane filters. The filtration capacity is 0.2~1 micrometers.
How does perfume making machine work?
In our standard perfume making machine, the evaporating coil in the tank working circulation can mixing the perfume ,we also can add pneumatic motor on the top of the tank for mixing.
During the mixing operation, the ingredients (mainly alcohol) are pumped out from the bottom valve by diaphragm pump. The perfume passes the first and second filters to get it clarified. Then the perfume goes back to the mixing tank waiting for another filtration.
At the same time, the chiller works producing very cold temperature. The evaporating coil inside the perfume tank transfers the chill to the perfume around it. The impurity will be resolved from the perfume and filtered during the circulation.
80% of the main parts of our products are provided by world famous suppliers.
- Pneumatic control or Electric control
- Wide suitability
- High filling accuracy
- Labor saving
- Easy to use and maintain
1. 30% down payment before production and balance before shipment
2. For established customers, we will offer more favorable payment terms
3. We can offer different pricing of FOB, CIF and C&F.
4. L/C is acceptable.
1. IQC (Incoming Quality Check)
2. IPQC (In-Process Quality Check)
3. OQC (Out-going Quality Check)
4. FQC (Final Quality Check)
1. MOQ:1 Sets
2. Lead time:15-20 working days
*Customers buying our machinery
Strong and solid
Pallet underneath for easier container loading and unloading
1. PE film wrapping overall
2. Fittings are packed in separate PE bag.
3. Spare parts are provided in a bag.
4. Corners are well wrapped and protected with synthetic fiber paper to avoid possible scratch.
1. We are only one and half hours away from Hong Kong
2. We offer FOB Guangzhou and FOB Shenzhen to our customers
3. We can also offer CIF to those in need.
4. We can also help in container consolidation
1. Over 20 years in Cosmetic Machine industry
2. Certification: Manufacturing License of Special Equipment (Class I and Class II Pressure Vessels) of China, Certificate of Conformity and CE Certificat
3. 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider and Omron
4. Hands-on experience of projects
5. Professional equipment commissioning
6. Typical Customers: P&G, Amway and Unilever
7. Supply one-stop cosmetics pharmaceutical equipment solutions
8. Strong R&D dept. Make up with superior engineer and Germany expert
1. Lean Manufacturing
Bring in modern producing equipment,workshop,and standardize the producing proess, to obain the greatest possible optimazation,meet demands of the growing enterprises,put on speed ,inprove quality,finally ,win the market.
2. High cutting-edge processing equipment makes high quality products.
The advanced automatic production equipment and excellent line production line show the first rate quality.
Technical specialists take part in production directly,to ensure th stability and reliability of our products .The compective product awareness which grows day by day and more competive industry products make the global marker change a lot.
* After-sales service
A: 1 year from date of delivery, should any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
B: Maintenance : any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
C: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
