Quick Details

  • Type: Packaging Line
  • Condition: New
  • Application: Chemical, Medical, Filling air fresher,paint,pesticide,cosmetic liquid, etc
  • Packaging Type: Cans
  • Packaging Material: Wood
  • Automatic Grade: Semi-Automatic
  • Driven Type: Pneumatic
  • Voltage: Pneumatic control
  • Power: Pneumatic
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LIENM
  • Model Number: LM-EY
  • Dimension(L*W*H): L1200*W650*H1670MM
  • Weight: 250KG
  • Certification: CE, ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product: Semi automatic bag on vlave aerosol filling and sealing machine
  • Function: Pneumatic filling and sealing
  • Filling accuracy: ±1%
  • Filling Volume: 0-500ml
  • Capacity: 400-800 cans / hour
  • Suitable can diameter: 35-70mm
  • Suitable can height: 60-315mm
  • Working pressure: 0.5-0.7MPA
  • Usage: Filling air fresher,paint,pesticide,cosmetic liquid, etc
  • Material: Stainless steel304&316

Packaging & Delivery

Packaging Details: Plywood Case Packing
Delivery Detail: Shipped in 25 days after payment

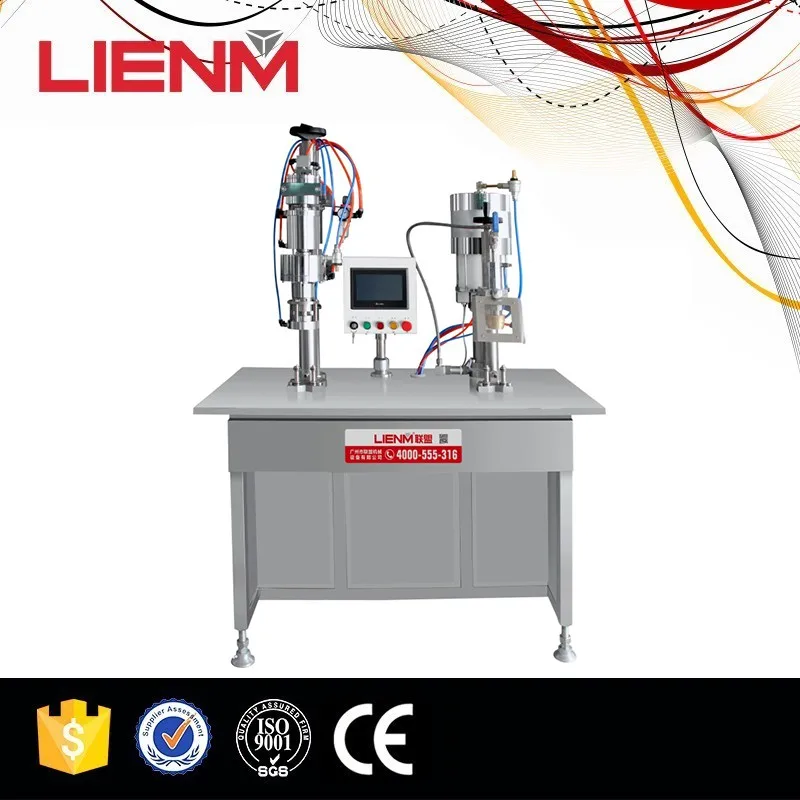

Semi automatic bag on valve aerosol filling and sealing machine

Product  Show:



               Click to view>>                                          Click to view>>                                   Click to view>>



Instruction



Plc control Bag-on-valve 2-in-1 machine is composed of gas filling-sealing machine, liquid filling machine, PLC control system, and workbench. It is applicable for binary(bag-on-valve) aerosol packing products making, this machine filling gas under-cap and crimping at the same working position, then filling liquid trough valve. The whole machine adopts PLC and touch screen control system, easy operation, security, precise metering, high precision filling volume.





Technical parameter:



Filling Capacity

 400-800 cans / hour

Filling Accuracy

 ±1%

Applicable Aerosol Can Height

60-315mm

Applicable Aerosol Can Diameter

35-70mm

Filling Volume

0-500mm

 Working Pressure

0.5-0.7MPA

Driving Type

Pneumatic & electric type

 size

 L1200*W650*H1670mm

 weight

 250kg



Feature



1. Semi-automatic bag on valve filling machine for propellant charging and crimping





This machine is semiautomatic, there is a single working table seated on the working table which combines the function of vacuum, propellant filling and crimping, more economic propellants are optional for customer such as N2, Co2, DME,PLG.Ar or even compressed air.



2. Semi-automatic bag on valve filling machine for liquid filling



This machine is aiming to charge the liquid material into bag through the valve, since material is insolated into bag and will not touch propellant, thus this machine is widely used for pharmaceutical, food, cosmetic and other bag on valve products manufacturing. And there is no any restrict about water based, oil based or even alcohol based liquid material.





Payment Terms:



1. 30% down payment before production and balance before shipment

2. For established customers, we will offer more favorable payment terms

3. We can offer different pricing of FOB, CIF and C&F.

4. L/C is acceptable.



Quality Control



1. IQC (Incoming Quality Check)

2. IPQC (In-Process Quality Check)

3. OQC (Out-going Quality Check)

4. FQC (Final Quality Check)



Warehousing Condition



1. Shady

2. Cool

3. Dry

4. Dust-free







FAQ



Q1: Are you a factory or trading company?

A1: We are a factory specialized in daily cosmetic and perfume equipment. Such as, water treatment, vacuum emulsifier, shampoo and liquid soap mixers , perfume making machine, storage tank, filling and other packing machines.



Q2: Where is your factory location? How can I visit there?

A2: Our factory is located in Guangzhou, China. You could visit us by taxi or by metro. It’s only 20 minutes from our factory to Baiyun International Airport. You also could choose by metro with line 3 only two stations from Airport South to Longgui Station (Near by our factory), then we could arrange a car to pick you up there.



Q3: How does your factory do regarding quality control?

A3: Quality is priority. People from Lienm always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained TUV and ISO authentication



Q4: What’s the guarantee if we purchase from you?

A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.



Q5: How about the after service?

A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.



Suppier & Customer:





Other Information:   Vacuum Homogenizer émulsifiant |  Vacuum Homogenizer émulsifiant

Quality Control

1. IQC (Incoming Quality Check)

2. IPQC (In-Process Quality Check)

3. OQC (Out-going Quality Check)

4. FQC (Final Quality Check)

Warehousing Condition

1. Shady

2. Cool

3. Dry

4. Dust-free

Capacity

1. MOQ:

1 Sets

2. Lead time:

15-20 working days

Shipping

1. We are only one and half hours away from Hong Kong

2. We offer FOB Guangzhou and FOB Shenzhen to our customers

3. We can also offer CIF to those in need.

4. We can also help in container consolidation

Payment Terms

1. 30% down payment before production and balance before shipment

2.We can offer different pricing of FOB, CIF and C&F.

3.For established customers, we will offer more favorable payment terms

Packing

Outer Packing

Plywood Case

Strong and solid

Pallet underneath for easier container loading and unloading

Inner Packing

1. PE film wrapping overall

2. Fittings are packed in separate PE bag.

3. Spare parts are provided in a bag.

4. Corners are well wrapped and protected with synthetic fiber paper to avoid possible scratch.
